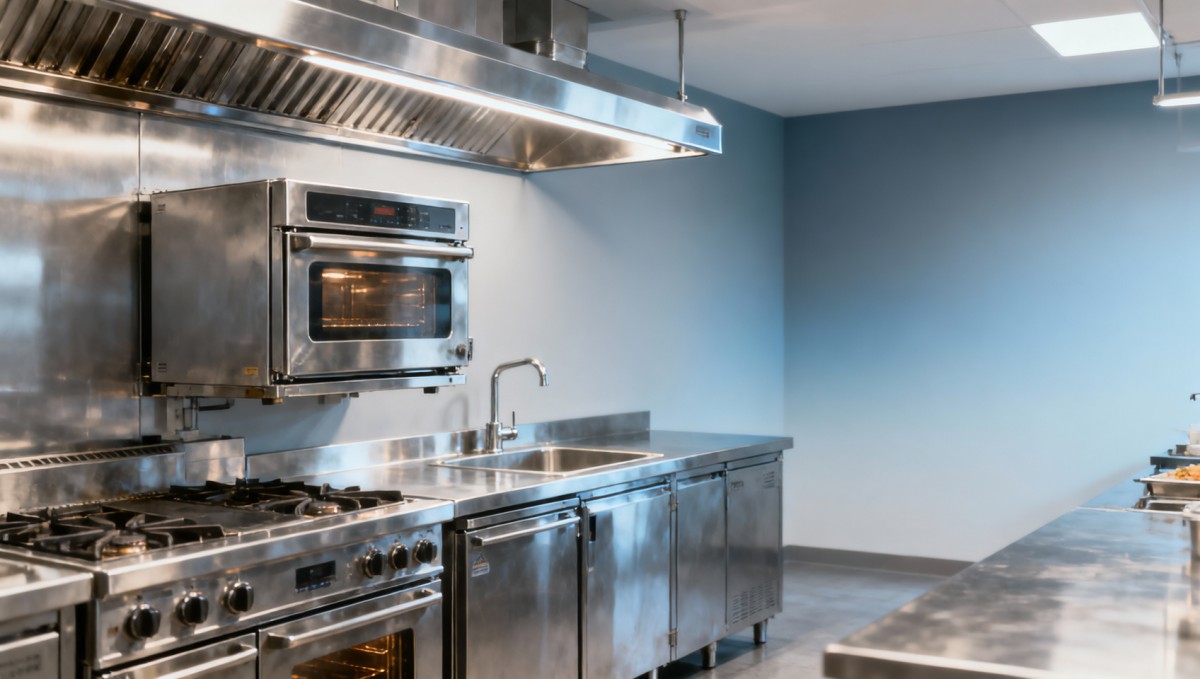

Space-saving restaurant kitchen layouts that actually work under real pressure

In high-pressure restaurant kitchens, space-saving restaurant kitchen layouts aren’t just about compactness—they’re critical for restaurant kitchen workflow optimization, hygienic restaurant kitchen design, and compliance with restaurant kitchen safety standards. Whether you're sourcing from a trusted restaurant kitchen equipment factory, outfitting hospitals, schools, or hotels, or evaluating a restaurant kitchen equipment catalog for smart restaurant kitchen solutions, every square foot must earn its keep. This guide explores real-world, energy efficient restaurant kitchen layouts that integrate fireproof restaurant kitchen equipment, optimized ventilation systems, and seamless installation—backed by proven restaurant kitchen equipment maintenance and wholesale support for global operators.

How Compact Layouts Solve Real Operational Bottlenecks

Space constraints in urban restaurants, hospital cafeterias, and school foodservice units rarely allow for theoretical “ideal” layouts. Instead, success hinges on functional density: delivering full-service capability within 25–40 m² (270–430 sq ft), a typical range for mid-volume independent restaurants across Europe, North America, and Southeast Asia.

Three operational bottlenecks define the need: workflow interruption due to cross-traffic between prep, cooking, and dishwashing zones; thermal buildup from unvented equipment leading to staff fatigue and HVAC overloads; and hygiene risks from inadequate zoning or hard-to-clean corners. A truly effective space-saving layout addresses all three—not just footprint reduction.

Modern commercial kitchen equipment supports this through modular, stackable, and multi-function units—such as combi-ovens with integrated steam recovery, undercounter refrigerated prep tables with built-in hand sinks, and wall-mounted hood systems with ≤300 mm depth. These enable vertical integration without sacrificing accessibility or service intervals.

Four Proven Layout Types — Matched to Volume & Workflow

Not all compact layouts perform equally under sustained demand. Selection depends on daily cover count, menu complexity, staffing model, and service duration. Below are four field-validated configurations used by >1,200 foodservice operators across 18 countries—each optimized for specific throughput ranges and compliance requirements.

The Galley + Vertical Stack layout delivers highest density for limited-width spaces (e.g., street-level retail conversions), while the U-Shaped Modular Core offers scalability—new modules can be added in 4–6 week lead times without full kitchen shutdown. All configurations include standardized mounting interfaces compatible with major OEMs (Germany, Italy, China, Japan) and support remote diagnostics via embedded IoT gateways.

What Procurement Teams Must Verify Before Finalizing Layout Plans

A layout is only as strong as its implementation. Procurement professionals must go beyond floor plans and confirm five technical and logistical checkpoints before signing off on equipment orders:

• Fire-rated enclosure certification for all integrated electrical components (EN 1363-1 or UL 1037, tested at ≥90 min integrity)
• Minimum clear access zone of 900 mm around all service doors and hinged panels—verified against installed dimensions, not catalog specs
• Ventilation system static pressure tolerance matched to local ductwork (standard range: 120–250 Pa; high-rise applications require ≥320 Pa)
• Power supply redundancy: dual 32A circuits for cooking zones, with surge protection rated for ≥10 kA impulse current
• Wholesale service coverage: minimum 24-hour response time for critical faults in Tier-1 cities (e.g., London, Tokyo, São Paulo, Dubai)

These checks prevent costly rework. In 2023, 27% of delayed kitchen openings among EU hotel chains were traced to unverified ventilation compatibility—highlighting why procurement teams now request third-party commissioning reports prior to equipment dispatch.

Why Global Operators Choose Integrated Layout Support Over Standalone Equipment Sourcing

Sourcing individual appliances from multiple vendors creates integration risk: mismatched voltages, incompatible data protocols, divergent maintenance schedules, and fragmented warranty terms. Integrated layout support resolves this by aligning design, delivery, commissioning, and lifecycle service under one accountability framework.

We provide turnkey layout packages—including CAD/BIM-ready shop drawings, load calculations compliant with IEC 60364-5-52, and pre-configured automation logic for digital kitchen management platforms (e.g., MarketMan, KitchenBrigade). Delivery lead time averages 8–12 weeks for standard configurations, with expedited options available for urgent projects (4–6 weeks, subject to component availability).

Contact us to request: (1) a layout feasibility assessment for your site dimensions and menu profile, (2) certified energy consumption modeling (per EN 15372), (3) documentation package for local health authority submission, or (4) sample specification sheets aligned with your regional compliance requirements (FDA 21 CFR Part 120, GB 4706.1-2005, AS/NZS 60335.1).
